Shoei SRL-EXT NXR2蓝牙通信系统
Sena的通讯，Shoei的保护，Harman Kardon的声音。SRL-EXT专为Shoei最流行的头盔之一NXR2设计。该紧凑型通信系统提供网状和蓝牙对讲机，以及用于音乐、GPS、电话等的智能手机连接。此外，SRL-EXT用户可以体验到优质的声音。
特征：
- Harman Kardon扬声器和麦克风发出的声音。
- 专为Shoei NXR2设计
- 蓝牙5
- 网状对讲机™
- 4路蓝牙®对讲机
- 访问数字助理
- 高级噪声控制™
- 支持八种语言的语音命令：英语、法语、德语、西班牙语、意大利语、中文、日语和俄语。
- 可与谷歌助手和苹果的Siri连接
- 可通过Sena摩托车应用程序进行配置
规格：
技术数据：
- 尺寸：主模块：108 mm x 44 mm x 20 mm/扬声器：40 mm-厚度7.3 mm/挂钩麦克风：长度60 mm/扬声器之间的电缆长度：360 mm。
- 重量：主模块-48g
- 工作温度：-10°C-50°C
- 范围：蓝牙对讲机：在开阔地带可达2公里/网状对讲机：在空旷地带可达2 km（至少6名驾驶员之间可达8.0公里）
- 支持多达：蓝牙对讲机：4名乘客/开放式网状对讲机：无限数量/群组网状对讲机：24名乘客
- 支持的信道：开放式网状对讲机：9个信道
- 网状对讲机™ 技术
- 蓝牙：5/耳机模式（HSP）/免提模式（HFP）/高级音频分发模式（A2DP）/音频视频遥控模式（AVRCP）
- 降噪：高级噪音控制™
- 编解码器：内置SBC编解码器
- 调频收音机：射频数据：76~108MHz/10电台预设和自动扫描。
- 声音：高级扬声器和麦克风，配有Harman Kardon Sound
- 通话时间：蓝牙对讲机：11小时/网状对讲机：11个小时
- 充电时间：2.5小时
- 电池类型：锂聚合物电池
- 安全标准：CE、FCC、IC
兼容性：
制造商通知：
- SRL-EXT专为SHOEI NXR2头盔设计。SRL-EXT主模块和外部电池的形状是弯曲的，以匹配NXR2的外部曲线。SRL-EXT允许用户在快速夹具或粘合剂安装之间进行选择。SRL-EXT主模块安装在头盔的左侧，而外部电池粘接在头盔的右侧。
- SRL-EXT的扬声器和麦克风是与Harman Kardon的音频专家合作设计的，以确保您的SHOEI头盔发出优质的声音。精心制作的扬声器和全新麦克风使SRL-EXT能够提供无与伦比的音频体验。扬声器向骑手的耳朵发送清晰的音频，而麦克风则通过新设计的传感器提供优质的语音通信。您可以在包括的几个麦克风选项中进行选择。使用SRL-EXT，在SHOEI NXR2头盔中体验Harman Kardon的声音。
内容：
- 1个SRL-EXT
- 1x有线麦克风
- 1x尼龙粘扣，用于有线麦克风
- 2个扬声器（带扬声器垫）
- 扬声器用2个Velcro尼龙粘扣
- 2个薄扬声器垫
- 1x可充电电池
- 1x电池双面胶带
- 1x双面胶带，用于耳机
- 2x螺钉
- 1x夹具
- 1x USB-C电缆
- 用于整理电缆的胶带
- 1x内六角扳手
处置说明：

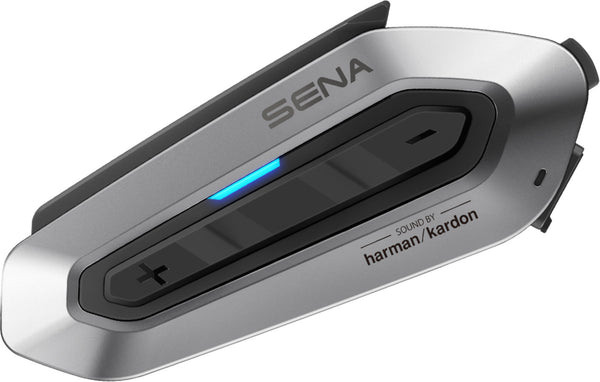

Shoei SRL-EXT NXR2 Bluetooth Communication System
Communication by Sena, protection by Shoei and sound by Harman Kardon. The SRL-EXT is designed specifically for one of Shoei's most popular helmets, the NXR2. The compact communication system offers both mesh and Bluetooth intercom, as well as smartphone connectivity for music, GPS, phone calls and more. In addition, SRL-EXT users experience premium sound.
Features:
- Sound by Harman Kardon speaker and microphone.
- Specially designed for the Shoei NXR2
- Bluetooth 5
- Mesh Intercom™
- 4-way Bluetooth® intercom
- Access to digital assistants
- Advanced Noise Control™
- Supports voice commands in eight languages: English, French, German, Spanish, Italian, Chinese, Japanese and Russian.
- Connectable with Google Assistant and Apple's Siri
- Configurable through Sena Motorcycle App
Specifications:
Technical data:
- Dimensions: Main module: 108 mm x 44 mm x 20 mm / Speakers: 40 mm - thickness 7.3 mm / Hook microphone: length 60 mm / Cable length between speakers: 360 mm.
- Weight: Main module - 48g
- Operating temperature: -10°C - 50°C
- Range: Bluetooth intercom: Up to 2 km in open terrain / Mesh intercom: Up to 2 km in open terrain (Can be up to 8.0 km between at least 6 drivers)
- Supports up to: Bluetooth Intercom: 4 riders / Open Mesh Intercom: unlimited number / Group Mesh Intercom: 24 riders
- Channels supported: Open Mesh Intercom: 9 channels
- Mesh Intercom™ Technology
- Bluetooth: 5 / Headset Profile (HSP) / Hands-Free Profile (HFP) / Advanced Audio Distribution Profile (A2DP) / Audio Video Remote Control Profile (AVRCP)
- Noise Reduction: Advanced Noise Control™
- Codec: Built-in SBC Codec
- FM Radio: Radio frequency data: 76 ~ 108MHz / 10 station presets and auto scan.
- Sound: Premium speakers & microphone with Sound By Harman Kardon
- Talk time: Bluetooth Intercom: 11 hours / Mesh Intercom: 11 hours
- Charging time: 2.5 hours
- Battery type: Lithium polymer battery
- Safety Standards: CE, FCC, IC
Compatibility:
Manufacturer's Notice:

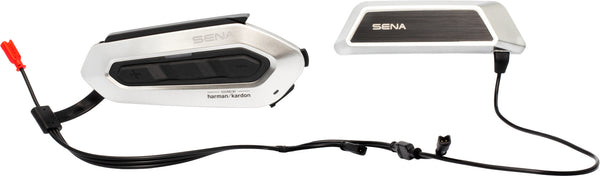

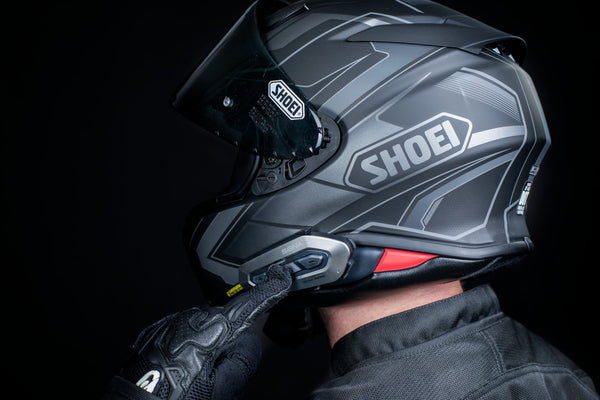

- The SRL-EXT is designed specifically for the SHOEI NXR2 helmet. The shape of the SRL-EXT main module and external battery are curved to match the outer curves of the NXR2. The SRL-EXT allows the user to choose between quick-clamp or adhesive mounting. The SRL-EXT main module is installed on the left side of the helmet, while the external battery is glued to the right side of the helmet.
- The SRL-EXT's speakers and microphone have been designed in collaboration with the audio experts at Harman Kardon to ensure premium sound in your SHOEI helmet. Expertly crafted speakers and an all-new microphone allow the SRL-EXT to deliver an unmatched audio experience. The speakers send clear audio to the rider's ears, while the microphone offers superior quality voice communication with a newly designed sensor. You can choose between several microphone options that are included. Experience SOUND BY Harman Kardon in your SHOEI NXR2 helmet with the SRL-EXT.

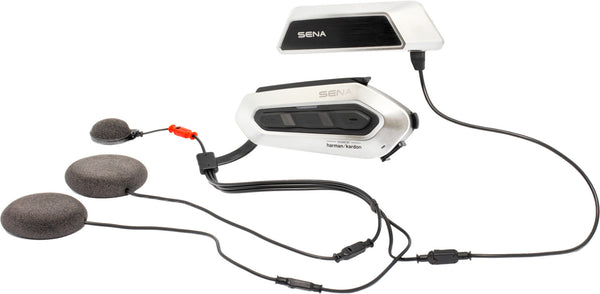

Contents:
- 1x SRL-EXT
- 1x wired microphone
- 1x Velcro fastener for wired microphone
- 2 loudspeakers (with loudspeaker pads)
- 2x Velcro fastener for loudspeakers
- 2x thin loudspeaker pads
- 1x rechargeable battery
- 1x double-sided adhesive tape for battery
- 1x double-sided adhesive tape for headset
- 2x screw
- 1x clamp
- 1x USB-C cable
- Adhesive tapes for organising cables
- 1x Allen wrench
Disposal instructions:
